Region Fill
These methods are used to fill regions, polylines and other closed shapes with various line patterns.
These fill patterns are used by machining operations such as pockets and 3D waterline roughing to generate toolpaths, but can be used independently to create interesting drawing effects.
Region fillers take the following parameters:
Margin : This is the distance away from source shapes to avoid filling lines. In pocketing, this would be the same as the tool radius.
Step Over : This is the distance between fill lines. In pocketing, this would be the same as the stepover distance.
Filling Patterns
Inside Offsets
Progressive offsets from holes outwards.
Outside Offsets
Progressive offsets from outside shape inwards.

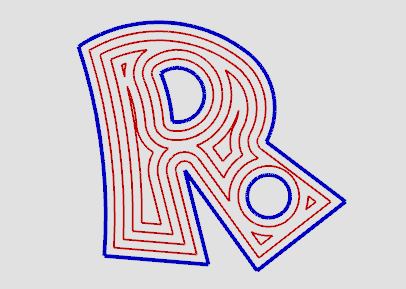

Inside + Outside Offsets
Progressive offsets from outside shape inwards unioned with offsets from holes outwards.
Horizontal Hatch
Horizontal line fill style.

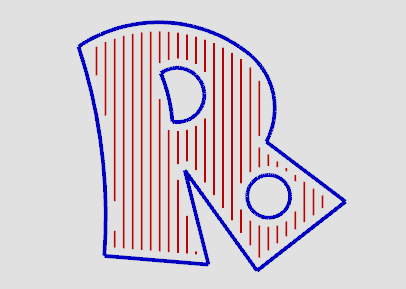

Vertical Hatch
Vertical line fill style.
