Lead Moves (Lead In and Lead Out)
Many machining operations support lead in and out moves, which control the movement used when entering and exiting a cut.
Lead in moves can be ramped so the cutter will gradually reduce the cutter Z height while simultaneously feeding in X and or Y. This can be crucial when using certain cutters that do not support directly plunging into stock.
There are two main types of lead moves;
The lead move properties also support a
Spiral Lead
The entry move will follow the path of the underlying toolpath in X and Y, while decreasing the cutter Z from the previous stock level, down to the next target depth.
The angle of the spiral ramp is defined in the
Hint: The plunge down to each depth increment can slow machining times considerably. To reduce this, a Fast Plunge Height value can be set in the Machining options. This allows a rapid move to be used down to the next cut level.
If
For closed shapes, the lead move will then replace the toolpath at each depth level,
with just a single constant Z toolpath inserted at the final target depth to ensure a level base to the cut.
For example; if the source shape used was a circle, the resulting toolpath would be a continuous spiral, with each loop cutting one depth increment,
followed by a circular cut at the target depth.
The following images compare a spiral lead in move with an explicit 15 degree ramp angle and a spiral with a 0 degree angle where the ramp angle is then automatically calculated.
If a very shallow spiral angle is used, it may be necessary for the lead move to complete a number of circuits of the toolpath before reaching the target depth, as shown in the following image, where a 1 degree angle is used.

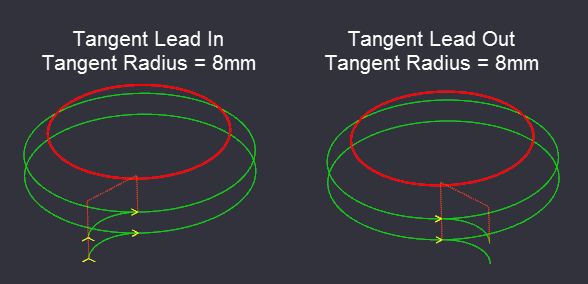

Tangent
The tangent lead move will use a circular arc move to enter or exit the stock, meeting the target toolpath start point at a tangent.
As well as setting the
Tangent moves are particularly useful for lead out moves, to avoid tool marks as the cutter moves away from the stock.
Tangent moves will also make use of the
In some cases, such as an inside profile cut with internal corners, the default toolpath start point may lead to problems when using tangent lead moves. In these cases, the machining start point should be modified to move it to a more sensible location, away from inside corners.
